Home > Our products > End fittings > Ball socket - Thread M6

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
Traceparts
Print

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.20 € HT Piece
1.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference

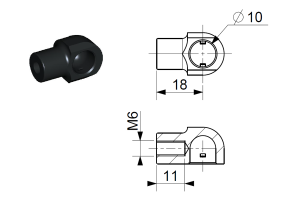

ST 072421
Material
Plastic
Length
18 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
18 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

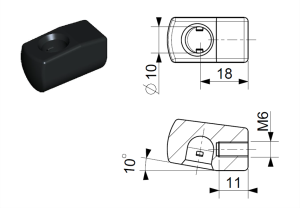

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.30 € HT Piece
1.56 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 072421-110
Material
Plastic
Length
18 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
18 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
2.02 € HT
2.42 € TTC
Available
-
+

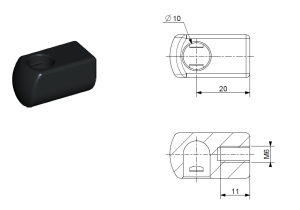

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.21 € HT Piece
1.45 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 07242S
Material
Plastic
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
2.81 € HT Piece
3.37 € TTC
Available
-
+
Traceparts
Print
Features
Reference

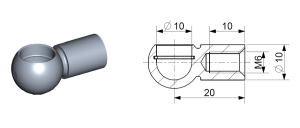

ST 092216
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
10 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
ST 092989 | Ball End - Threaded M6 - Ball 10mm | Steel
ST 092989
2.02 € HT
2.42 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
3.51 € HT Piece
4.21 € TTC
Available
-
+
Traceparts
Print
Features
Reference

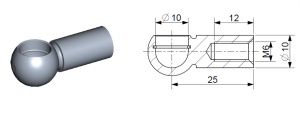

ST 092220
Material
Steel
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
12 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
4.74 € HT Piece
5.69 € TTC
Available
-
+
Traceparts
Print
Features
Reference

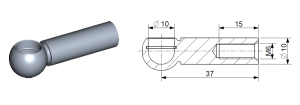

ST 092220-37
Material
Steel
Length
37 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
37 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
15 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
18.42 € HT Piece
22.10 € TTC
Available
-
+
Traceparts
Print
Features
Reference

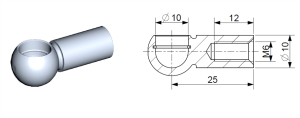

ST 092220I
Material
Stainless steel
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
12 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
15.16 € HT
18.19 € TTC
Available
-
+
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
15.46 € HT
18.55 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
3.05 € HT Piece
3.66 € TTC
Available
-
+
Traceparts
Print
Features
Reference

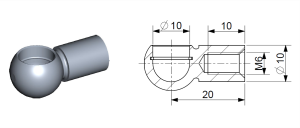

ST 092221
Material
Steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
10 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
18.60 € HT Piece
22.32 € TTC
Available
-
+
Traceparts
Print
Features
Reference

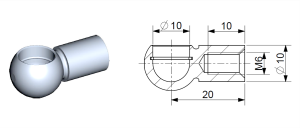

ST 092221I
Material
Stainless steel
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
10 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
ST 092990i | Ball End - Threaded M8 - Ball from 10mm | Stainless St
ST 092990I
15.16 € HT
18.19 € TTC
Available
-
+
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
ST 092989i | Ball End - Threaded M6 - Ball 10mm | Stainless St
ST 092989I
15.46 € HT
18.55 € TTC
Available
-
+

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.20 € HT Piece
1.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference

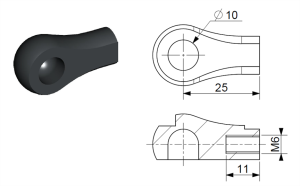

ST 092720
Material
Plastic
Length
25 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
25 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
11 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+

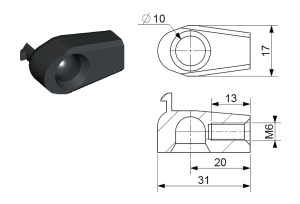

Ball socket - Thread M6

Ball from 10 mm

Reference
M6 ball sockets are designed to be fitted on M6 threaded gas springs . Allows a high flexibility of positions, and limit the stress on the gas spring.
1.20 € HT Piece
1.44 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 092722
Material
Plastic
Length
20 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
20 mm
Axis / Ball diameter
10 mm
Thread
isometric
End fitting type
Ball socket
Thread depth
13 mm
Threading
M6
Related products
The items below are suitable for your selected product
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
ST 092990A | Ball End - Threaded M8 - Ball from 10mm | Steel
ST 092990A
1.59 € HT
1.91 € TTC
Available
-
+
ST 092992 |
ST 092992
ST 092992 |
ST 092992
5.10 € HT
6.12 € TTC
Available
-
+
