Home > Our products > Compression gas springs > Threaded Gas Spring - Rod 6mm

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
Print

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 020+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
20 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
80 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product

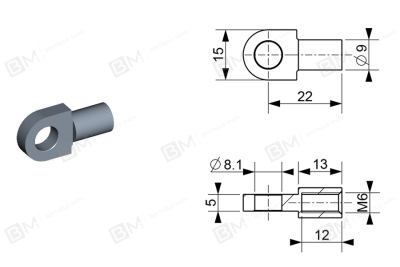

ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 040+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
40 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
115 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 060+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
60 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
155 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 080+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
80 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
195 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 100+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
100 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
235 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 100+F1V+D6E225
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
100 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
225 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 120+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
120 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
275 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+

Threaded Gas Spring - Rod 6mm

Thread M6 | Stroke 20 to 150 mm | Force 30 to 400N

1. Reference
The threaded end compression gas springs is compatible with a large range of end fittings according to your needs. Caution: does not tolerate lateral forces. Never tighten on the fixing points (minimum play of 0.5mm required). Screw the end fitting completely onto the gas spring thread without leaving any gap.
2. Enter the force
Your gas spring reference will be :
37.75 € HT Piece 50.33 €
45.30 € TTC
Available
-
+
Traceparts
Print
Features
Reference
ST 150+F1V+D6
Material
Steel
Rod end fitting
M6 Threaded Gas Spring
Tube end fitting
M6 Threaded Gas Spring
Stroke
150 mm
Rod diameter
6 mm
Tube diameter
15 mm
Rod thread diameter
M6
Tube thread diameter
M6
Extended length
335 mm
Gas spring min. force
30 N
Gas spring max. force
400 N
Thread
isometric
Rod material
Nitrided steel
Tube material
Black epoxy painted steel
End type
Threaded (No end fittings)
Valve
No
Related products
The items below are suitable for your selected product
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
ST 1304 | Hole 8.1 mm | L 22 mm | Th 5 mm | Steel
ST 1304
1.75 € HT
2.10 € TTC
Available
-
+
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
ST 072421 | Ball 10 mm | Socket M6 | L 18 mm | Plastic
ST 072421
1.20 € HT
1.44 € TTC
Available
-
+
